As phones get faster and AI becomes smarter, you might think chips are just getting smaller and more精密.

But today, the chip industry is welcoming a "building block revolution" – and its name is Chiplet.

I. Traditional Chips: Carving a Whole Piece of Jade – Too Difficult!

In the past, making chips was like carving a whole piece of jade:

• CPU, GPU, memory, and I/O interfaces were all crammed onto the same silicon die

• Had to use the most advanced, most expensive process nodes (3nm/5nm) from start to finish

• The slightest defect would scrap the entire large chip

• Costs skyrocket, yield plummets, R&D moves at a snail's pace

Moore's Law is approaching its end, and traditional chips have hit a wall.

II. Chiplet: Break Chips into LEGOs, Freely Assemble!

Chiplet is simple: break large chips into small, function-specific chips, then reassemble them using advanced packaging.

• Compute Chiplet: Handles high-speed operations (using 3nm/5nm cutting-edge processes)

• I/O Chiplet: Handles data transmission (using mature 28nm process – cheap and stable)

• Memory Chiplet: Handles data storage (paired with HBM high-bandwidth memory)

• Specialized Chiplets: AI acceleration, signal processing, power management…

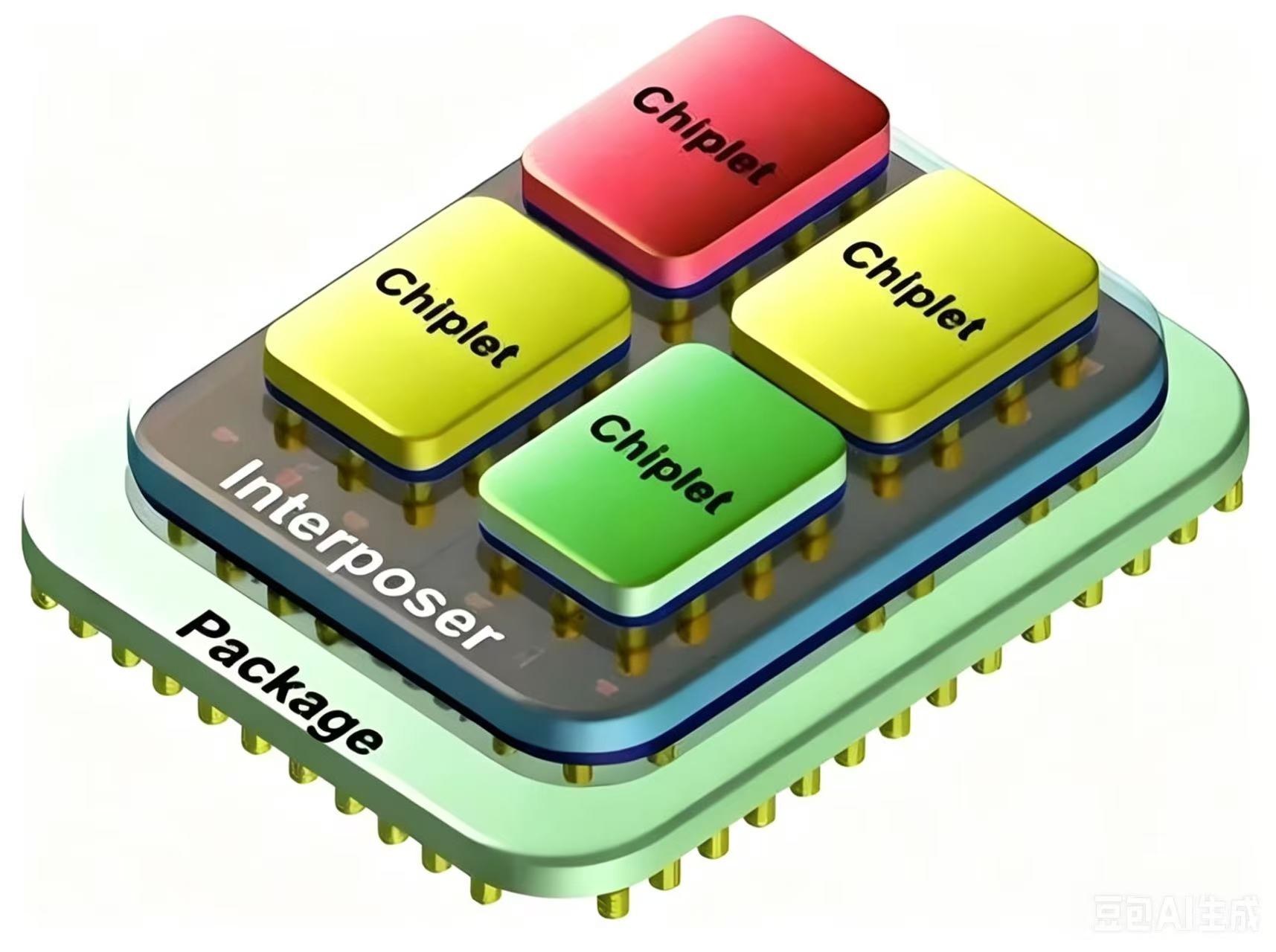

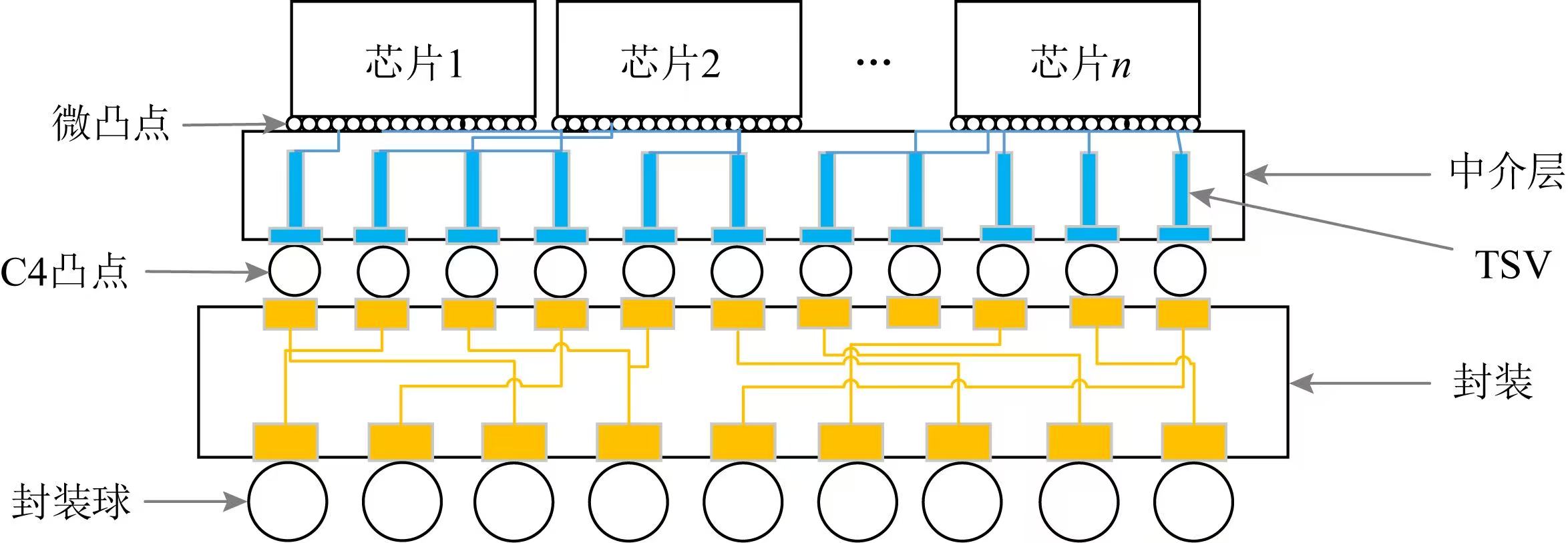

Each small chip does its own job, uses its most suitable process, and is then "glued" together using 2.5D/3D packaging.

From the outside, it still looks like one chip; on the inside, it's a miniature supercomputer cluster.

III. What makes Chiplet so powerful? 3 Core Advantages

1. Drastically lower costs, dramatically higher yield

• Small chip area means yield can easily exceed 90%+

• No need to use the most expensive processes for everything – overall cost reduced by 30%–50%

• If one small chip is bad, just replace that one – no need to scrap the whole thing

2. As flexible as building blocks

• Want a high-performance CPU? Add more compute chiplets

• Want an AI-specific chip? Add AI accelerator chiplets

• Want to upgrade? Swap out old chiplets and plug in new ones – no need to redesign everything

3. Higher performance, lower power consumption

• Short-distance, high-density interconnect – bandwidth doubles, latency drops

• 3D stacking is like building a skyscraper – smaller footprint, stronger computing power

• Heterogeneous integration – performance increases by 15%–200%, power consumption drops significantly

IV. Who is using it? Major players have already gone all in

• AMD: EPYC CPUs and MI series AI accelerators are all Chiplet-based architectures

• Intel: Core Ultra and Xeon processors are fully transitioning to Chiplet

• NVIDIA: Next-generation AI chips will大规模 adopt chiplet integration

• Domestic chips: Loongson, Hygon, Cambricon… all see Chiplet as a key opportunity to catch up and overtake

V. Why is it called the next big trend?

• Market explosion: $54.5 billion in 2025, projected to exceed $350 billion by 2034

• Main theme of the post-Moore era: Process nodes approach physical limits – Chiplet = the new Moore's Law

• Game-changer for domestic chip industry: No need to obsess over sub-7nm – mature processes + advanced packaging = high-end computing power

VI. One-sentence summary

Chiplet is not a "small improvement" for chips – it is a complete revolution:

From "whole-block carving" to modular building blocks, making chips cheaper, stronger, faster, and more flexible.

Whether it's AI, data centers, mobile phones, or automotive electronics – Chiplet is the future.
